Specifications
Specs
| |
Atlas™ |
| Microwave |
1.1 cu. ft. Convection Microwave |
| Chassis |
Mercedes-Benz® Sprinter 3500 Chassis |
| Engine |
Mercedes-Benz® 3.0L V6 Turbo Diesel |
| Emissions |
BlueTEC SCR Technology, 50 State – EPA/CARB Standards |
| Horsepower |
188 HP / 325 lbs torque |
| Transmission |
5 Speed Automatic |
| Axle Ratio |
3.92 |
| Wheelbase |
170″ |
| MPG* |
16-18 Estimated Highway |
| Chassis Safety System |
Mercedes-Benz® Adaptive ESP® (Electronic Stability Program) |
| GVWR/GCWR |
11,030 lbs/15,250 lbs |
| Tow Package |
Mercedes-Benz® Hitch, 7 Pin Trailer Plug, Brake Control Pre-wired |
| Tow Capacity** |
Up to 5,000 lbs |
| Trailer Safety System |
Mercedes-Benz® Trailer Stability Assist System |
| Overall Length |
24′ 9″ |
| Overall Height |
10′ 6″ (including A/C) |
| Overall Width |
8′ 3″ |
| Interior Height/Width |
6′ 6″ / 7′ 4.5″ |
| Tank Capacities |
23 gals (Fresh), 31 gals (Gray), 23 gals (Black) |
| LPG |
9.76 gals (41.38 lbs) 80% fill |
| Diesel Fuel |
26.4 gals |
| Air Conditioner |
15,000 BTU Quietstream™ Ducted with Heat Pump |
| Furnace |
16,000 BTU |
| Water Heater |
60,000 BTU On-Demand Continuous Flow |
| Heated Tanks |
Fresh, Gray & Black Tanks (12 volt) |
| Refrigerator & Freezer |
9.1 cu. ft. (12 volt) |
| Cooktop |
2 Burner with Integrated Cover |
| Safety Components |
LP Gas Detector, Smoke and CO2 Alarm, Fire Extinguisher, First Aid Kit |
| Plumbing System |
Macerator Pump System w/Electric Retract |
| TV Antenna |
Omni Directional In-motion VHF/UHF |
| TV Cable |
Cable TV Outlets/Hook-ups |
| TV Satellite |
Pre-wired for Satellite Dish |
| Electrical System |
Touch Screen/Touch Pad Electronic Controls with Energy Management System |
| Converter/Inverter |
50 amp Multi-stage Charger, 1,000 Watt Pure Sine Inverter |
| Generator |
3.2 kW (Diesel) with Remote Start |
| Batteries (Coach) |
2 – 12 Volt Deep Cycle Maintenance Free Group 24 AGMs |
| Shore Power |
30 amp/110 Volt Service |
| Solar Power |
300 Watt Solar System |
| Support |
24/7 365 Roadside Assistance |
| Airstream Warranty*** |
3 Years/36,000 Miles |
| Mercedes-Benz® Warranty*** |
3 Years/36,000 Miles |
| Mercedes-Benz® Engine Warranty*** |
5 Years/100,000 Miles |
| UBW (Unit Base Weight) |
10,045 lbs |
| NCC (Net Carrying Capacity) |
985 lbs |
Safety
| |
Atlas™ |
| Advanced Navigation with RV Specific Warnings & Instructions |
STD |
| Collision Prevention Assist |
STD |
| Fire Extinguisher |
STD |
| Four Seat-Belt Positions |
STD |
| High Mounted Third Brake Light |
STD |
| Lane Keeping Assist |
STD |
| Multiple Safety Impact Air Bags |
STD |
| Rain Sensing Windshield Wipers |
STD |
| Rear Camera Assist with Always-On Viewing & Adjustable Angle |
STD |
| Side Camera Assist Integrated in Side Mirrors |
STD |
| Smoke, CO2 & LPG Detectors |
STD |
Exterior
| |
Atlas™ |
| 110V Outlet, HDMI & Coaxial Output |
STD |
| Air Ride Suspension |
STD |
| Alcoa® DuraBright Aluminum Wheels |
STD |
| BASF Metallic OE Paint with Cut & Buff Finish |
STD |
| Bi-Xenon Headlights with Washer System |
STD |
| Chrome Package (body line trim, grill, license plate holder) |
STD |
| Exterior Shower with Hot & Cold Water |
STD |
| Fog Lamps |
STD |
| Frameless Radius-Corner Tilt-Open Windows |
STD |
| Front Lower Spoiler |
STD |
| Heated Windshield |
STD |
| Hidden Hitch Cover Rear Bumper |
STD |
| Hidden Retracting Screen Door |
STD |
| LED Patio & Awning Lighting |
STD |
| LED Undercarriage Lights with Dimmer |
STD |
| LP Accessory Hook-up (Grill) |
STD |
| Mercedes-Benz® OE Sprinter Tail Lights |
STD |
| Power Armless Awning with Auto-Retract |
STD |
| Power Entry Step with Hidden Design |
STD |
| Power Heated Mirrors |
STD |
| Power Stabilizer Jacks |
STD |
| Remote Locking Storage Doors with Hidden Latches |
STD |
| Storage Compartments with LED Motion Lights |
STD |
Cockpit
| |
Atlas™ |
| Custom Carpet Floor Mat |
STD |
| Entry Door Lighting |
STD |
| Heated Swivel Driver/Passenger Seats |
STD |
| In-Dash Maintenance Monitoring System |
STD |
| Locking Glove Box |
STD |
| Multifunctional Steering Wheel |
STD |
| Overhead Map Lights |
STD |
| Privacy Shades |
STD |
| Rear & Side View Camera Monitor |
STD |
| Tilt & Telescopic Steering Wheel |
STD |
| Touch Screen NAV/SAT Radio/DVD System (8″) |
STD |
Main Cabin
| |
Atlas™ |
| Adjustable LED Lighting |
STD |
| Angel White Overhead Locker Accent Laminate |
OPT |
| Black Ultraleather® |
OPT |
| Flush-Mount Cabinet Hardware & Soft Close Doors |
STD |
| Froli® Ergonomic Bed Support System |
STD |
| High Gloss Laminate Cabinetry |
STD |
| LED 40″ Widescreen HDTV & Soundbar on Power Lift |
STD |
| Magic Suede® on Trim & Window Coverings |
STD |
| Marine Woven Synthetic Flooring |
STD |
| Multiplex Control System with 7″ Color Touchscreen |
STD |
| Pedestal Table (2) |
STD |
| Power Opening Sunroof Skylight with Screen & Shade |
STD |
| Power Tilting Oceanair Window Shades |
STD |
| Signature Aluminum Ceiling & Trim |
STD |
| Ultraleather® Seating |
STD |
| USB Charging Ports |
STD |
| Villa® Power Sofa with Integrated Murphy Bed |
STD |
| Wardrobe Closet |
STD |
Galley
| |
Atlas™ |
| Aluminum Refrigerator Fascia |
STD |
| Drop-In Waste Basket with Solid-Surface Cover |
STD |
| Fantastic® Fan with Temperature & Rain Sensors |
STD |
| Galley Extension Pull-Out Shelf |
STD |
| Kohler® Faucet & Sink with Flush Solid-Surface Cover |
STD |
| Solid-Surface Countertop with Aluminum Backsplash |
STD |
Bathroom
| |
Atlas™ |
| Cedar Lined Wardrobe Closet |
STD |
| Corner Shower with Teak Wall Inlay |
STD |
| Fantastic® Fan with Temperature & Rain Sensors |
STD |
| Integrated LED Shower Lighting |
STD |
| Kohler® Faucet, Shower Head & Sink |
STD |
| Mirrored Medicine Cabinet |
STD |
| Riveted Aluminum Porthole Door |
STD |
| Storage Drawers |
STD |
| Toilet |
STD |
| Towel Rack |
STD |
Construction
| |
Atlas™ |
| Azdel Composite Roof/Floor/Wall Material |
STD |
| Curved Composite Storage Doors with Continuous Hinge |
STD |
| Floor – Vacuum-Bonded Aluminum-Framed |
STD |
| Interlocking Extrusion Joints with Huck Rivets |
STD |
| Molded Fiberglass Front & Rear Caps |
STD |
| Roof – Fiberglass Crowned Vacuum-Bonded Aluminum-Framed |
STD |
| Trimless Smooth Fiberglass Body Seams |
STD |
| Walls – Radius Vacuum-Bonded Aluminum-Framed |
STD |
Features
Atlas Spotlight Video - Tour the Atlas and see how the power slide-out, Murphy Suite bed, and spacious rear bathroom make this touring coach ready for any journey.

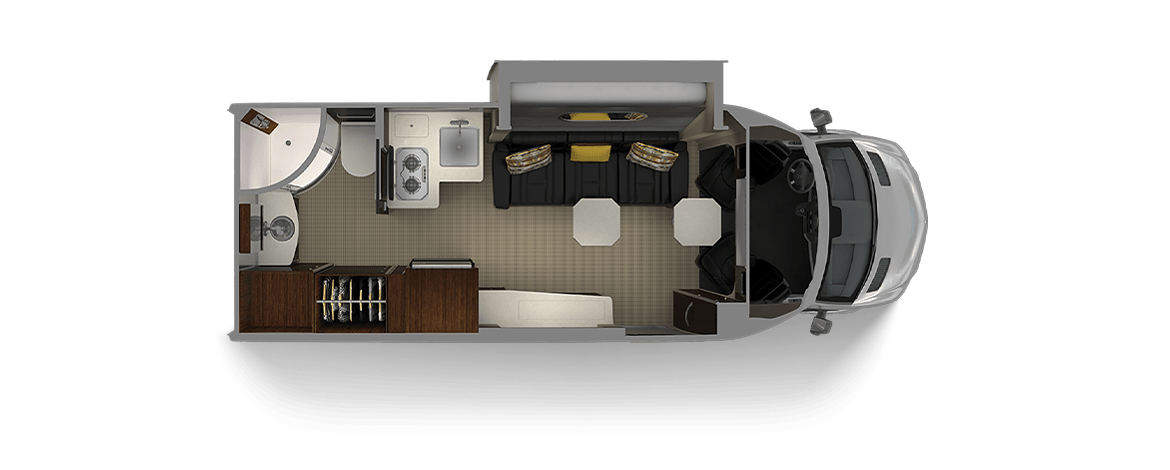

Power slide-out Murphy suite - If you can’t imagine a day without your creature comforts, you’ll be right at home in the Atlas™. While you’re traveling, you have plenty of room for passengers to ride along on the sofa and use the aisle. And when you get settled, you can extend the slide-out and pull down a large Murphy bed for a truly great night’s sleep, plus lovely extras like reading lights and shelves for your books and glasses.
Hideaway Samsung® Smart TV - Whether you’re tailgating, entertaining friends, or just having a movie night, the Atlas’ 40” Samsung LED Smart TV with a built-in sound bar is perfect. When you’re not using it, it stays tucked inside the entertainment cabinet under the Corian® countertop. Then, you simply push a button and it rises into position, right across from the sofa or Murphy bed.
Stunning residential-style bathroom - The spacious Atlas bathroom is a stand-out. Behind a pocket door is a three-piece, residential-style layout that spans the rear of the coach. The shower features teak inlays and Kohler® stainless steel fixtures, and a tankless water heater provides as much continuous hot water as you like. Plus, hanging closet storage and drawers for your folded clothes all live inside the bathroom, so everything you need to get dressed and ready is in one place.
Mercedes-Benz performance and safety - The powerful Mercedes-Benz® 3.0L V6 turbo diesel engine makes the Atlas driving experience so enjoyable – with powerful getup balanced with impressive fuel economy. And standard-setting Mercedes-Benz safety features are everywhere you look in the Atlas, including lane keeping assist, collision prevention assist, rear- and side-view cameras, the most airbags available from Mercedes-Benz, and a FUSION® Infotainment System with Garmin navigation and lane guidance.
Airstream Air Ride Suspension - The rear of the Atlas is equipped with our exclusive Air Ride Suspension which adjusts itself to bumps in the road, changes in elevation, and changes in wind resistance, so you can enjoy a smooth ride, mile after mile.
