VlEKwVK3VdIOverview
There’s no reason your getaway vehicle shouldn’t have just as much style as your home. The revival of our historic Caravel line has a just-right modern interior, with clean lines and sophisticated residential fixtures, and a neutral canvas on which you can add your personal taste.

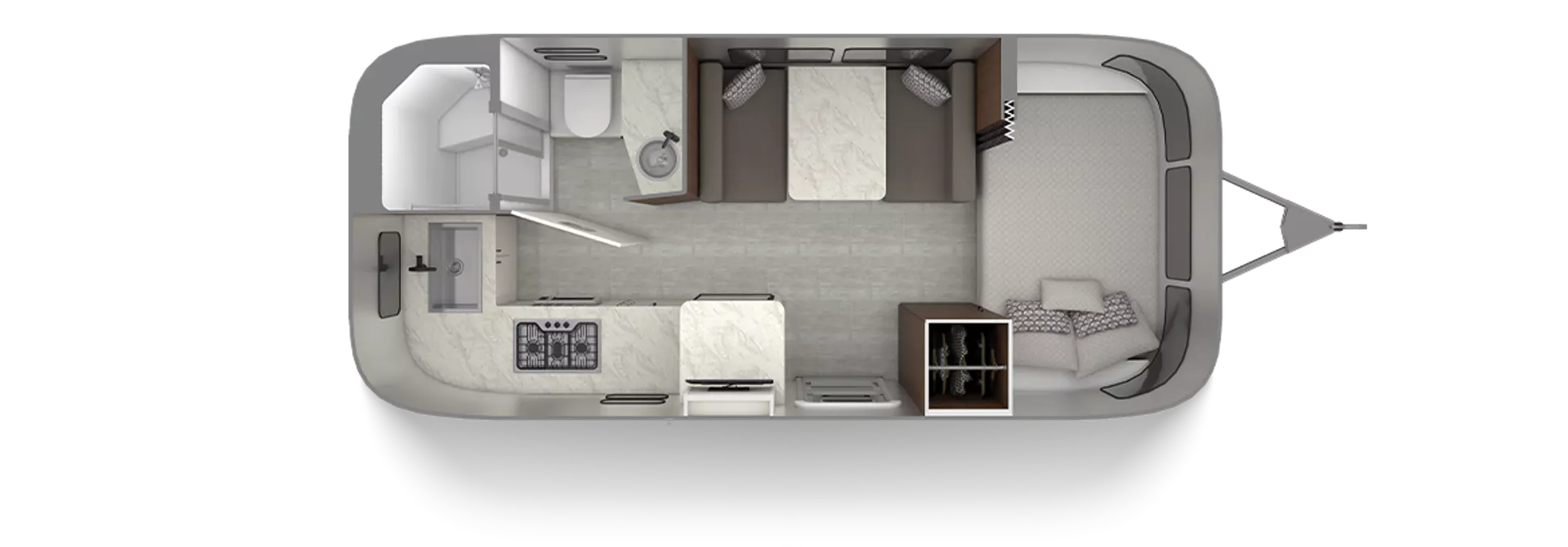

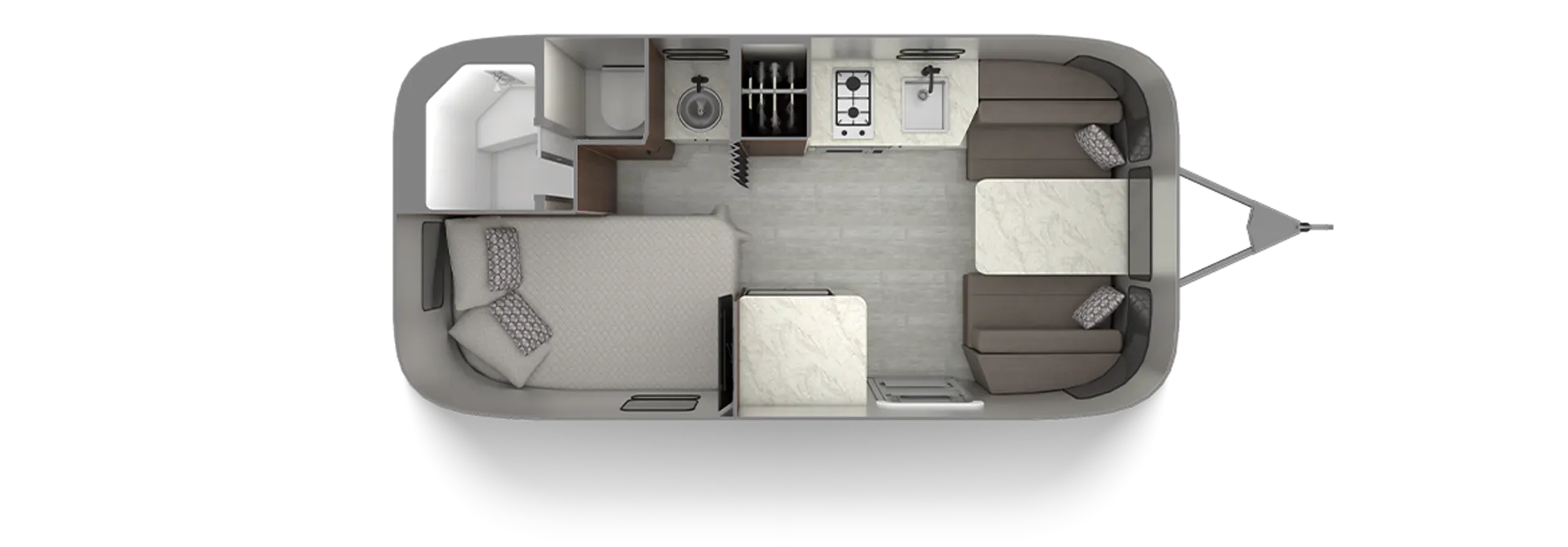

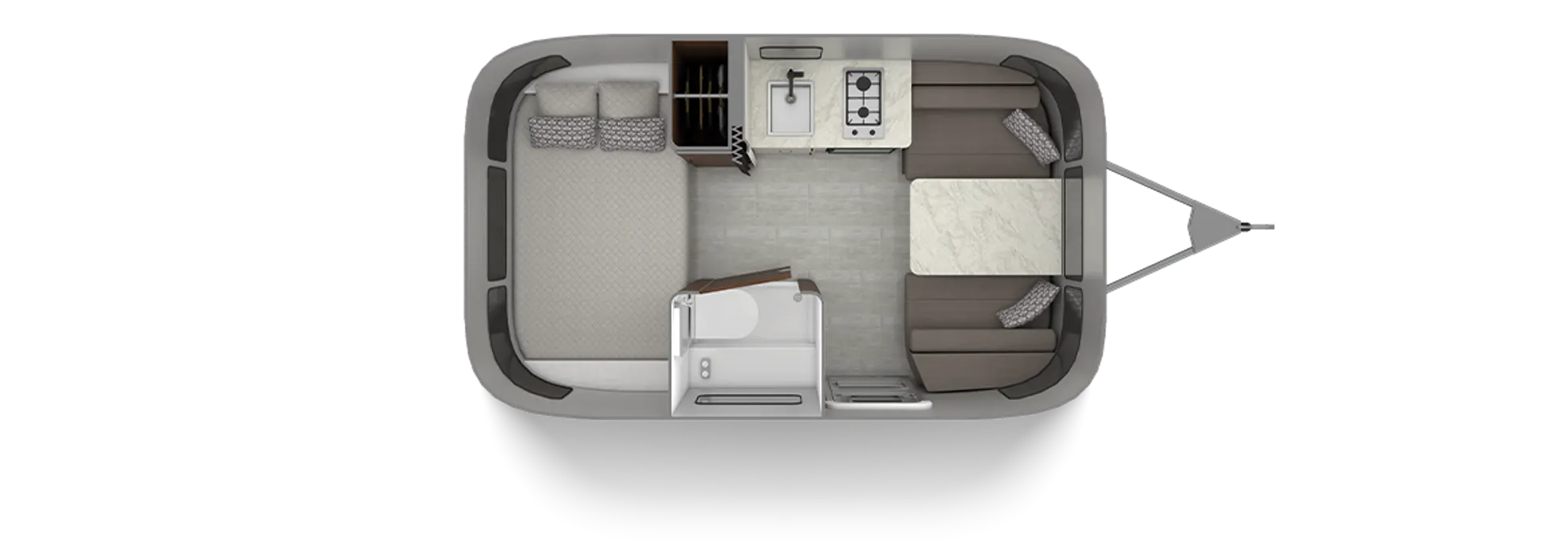

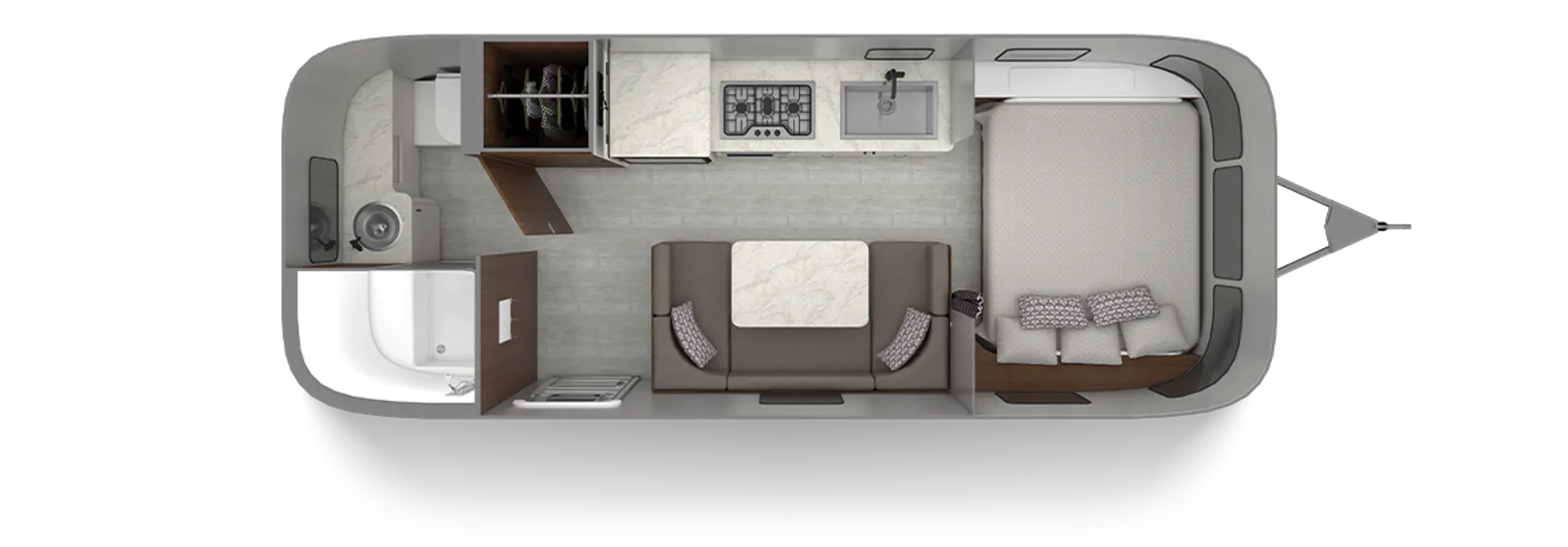

Floor Plans
Specifications
Specs
| 16RB | 19CB | 20FB | 22FB | |
|---|---|---|---|---|
| Exterior Length | 16' 2 | 19' 2 | 20' 8 | 21' 11 |
| Exterior Width | 8' | 8' | 8' | 8' |
| Interior Width | 7' 7 | 7' 7 | 7' 7 | 7' 7 |
| Exterior Height with A/C | 9' 7 | 9' 7 | 9' 7 | 9' 7 |
| Interior Height with A/C | 6' 7.5 | 6' 7.5 | 6' 7.5 | 6' 7.5 |
| Maximum Trailer Capacity (GVWR) (lbs.) | 4,300 | 5,000 | 5,000 | 5,000 |
| Net Carrying Capacity (lbs.) | 800 | 1,000 | 700 | 800 |
| Fresh Water Tank (gal.) | 23 | 27 | 27 | 27 |
| Gray Water Tank (gal.) | - | 28 | 28 | 28 |
| Black Water Tank (gal.) | 28 (Combo) | 18 | 18 | 18 |
| Convection Microwave Oven | - | OPT | OPT | OPT |
| Interior Windows and Skylights | 10 | 11 | 11 | 9 |
| Sleeping Capacity | Up to 4 | Up to 4 | Up to 4 | Up to 4 |
| Ducted Furnace (BTU) | 12,000 | 16,000 | 18,000 | 18,000 |
| Convertible Dinette, Lounge and Bed | 40 | 40 | 40 | 38 |
| Ducted Furnace (16,000 BTU) | – | – | – | |
| Microwave | STD | STD | STD | STD |
| 30 AMP Service Single A/C with Heat Strip (BTU) | 13,500 | 13,500 | 13,500 | 13,500 |
| Hitch Weight (with LP & Batteries) | 490 | 550 | 565 | 525 |
| Unit Base Weight (with LP & Batteries) | 3,500 | 4,000 | 4,300 | 4,200 |
| Refrigerator (2-way Electric DC/AC) | 3.1 cu. ft. | 4.3 cu. ft. | 4.3 cu. ft. | 4.3 cu. ft. |
| Master Bed Configurations | 48 | 48 | 48 | 54 |
Exterior
| 16RB | 19CB | 20FB | 22FB | |
|---|---|---|---|---|
| 2 Deep Cycle Group 24 Battery with Multi-Stage Converter | STD | STD | STD | STD |
| 4 Manual Heavy Duty Stabilizer Jacks | STD | STD | STD | STD |
| 90w Solar Package with Interior Monitor and AGM Battery | OPT | OPT | OPT | OPT |
| Aluminum Entry Door Handle | STD | STD | STD | STD |
| Aluminum Removable LP Cover | STD | STD | STD | STD |
| Black Tank Flush System | STD | STD | STD | STD |
| Cable TV Hookup | STD | STD | STD | STD |
| Cast Aluminum Door Hinges | STD | STD | STD | STD |
| Cast Aluminum LED Tail Lights | STD | STD | STD | STD |
| City Water Inlet with Water Pressure Regulator | STD | STD | STD | STD |
| Custom Aluminum Handcrafted 26 in. Wide Entry Door with Window | STD | STD | STD | STD |
| Dedicated Waste Hose Storage | STD | STD | STD | STD |
| Enclosed Aluminum Insulated Heated Underbelly | STD | STD | STD | STD |
| Exterior LP Gas Low Pressure Grill Connection | STD | STD | STD | STD |
| Exterior Shower with Hot & Cold Water | STD | STD | STD | STD |
| Fluorocarbon Treated UV Protected Aluminum Exterior | STD | STD | STD | STD |
| Goodyear® Endurance ST225/75R15 Tires, Balanced | STD | STD | STD | STD |
| Hand Painted Chassis | STD | STD | STD | STD |
| Handcrafted Welded Extruded Aluminum Window Frames | STD | STD | STD | STD |
| LED Dimmable Patio Awning Light | STD | STD | STD | STD |
| LED Entrance Light | STD | STD | STD | STD |
| LED Storage Compartment Light | STD | STD | STD | STD |
| LED Tank Service Light | STD | STD | STD | STD |
| License Plate Bracket with LED Light | STD | STD | STD | STD |
| Lockable Fresh Water Tank Inlet | STD | STD | STD | STD |
| LP (2 – 20 lb. Steel Tanks) with Auto 2-stage Regulator | STD | STD | STD | STD |
| Manual Zip Dee® Patio Awning with Sunbrella® Fabric | STD | STD | STD | STD |
| Nev-R-Adjust® Brakes | STD | STD | STD | STD |
| Nev-R-Lube® Sealed Bearings | STD | STD | STD | STD |
| Polished Bumper with Storage | STD | STD | STD | STD |
| Powered Hitch Jack with Light | STD | STD | STD | STD |
| Rear View Monitoring System | STD | STD | STD | STD |
| Semi-Monocoque Aluminum Superstructure | STD | STD | STD | STD |
| Shock Absorber | STD | STD | STD | STD |
| Solar Front Window Protection | STD | STD | STD | STD |
| Solar Pre-wire (3 Rooftop & 1 Front Access Points) | STD | STD | STD | STD |
| Spare Tire – Full Size | STD | STD | STD | STD |
| Stainless Steel Front Stone Guard Protection | STD | STD | STD | STD |
| Stylized Aluminum Wheels | STD | STD | STD | STD |
| Temperature Reducing One Piece White Aluminum Roof | STD | STD | STD | STD |
| Tempered Tinted Windows with Double Cam Latching System | STD | STD | STD | STD |
| Thermal Barrier Protection Between Interior & Exterior | STD | STD | STD | STD |
| Thule Aluminum Entry Step | STD | STD | STD | STD |
| Torsion Axle Suspension | STD | STD | STD | STD |
| Unique Front Door Key with Heavy Duty Deadbolt | STD | STD | STD | STD |
| ZipDee® Rear & Roadside Window Awning with Sunbrella® Fabric | OPT | OPT | OPT | OPT |
Interior
| 16RB | 19CB | 20FB | 22FB | |
|---|---|---|---|---|
| 1000W Pure Sine Inverter | STD | STD | STD | STD |
| Coat & Key Hooks | STD | STD | STD | STD |
| Complete Aluminum Interior Walls and Ceiling | STD | STD | STD | STD |
| EcoBatt™ Insulation | STD | STD | STD | STD |
| Electric/LP Water Heater (6 gal.; 9 gal. production) | STD | STD | STD | STD |
| Fantastic© Fan with Thermostat & Automatic Rain Sensor | STD | STD | STD | STD |
| Handcrafted and Welded Aluminum Screen Door with Guards | STD | STD | STD | STD |
| Handcrafted Italian Lite-Ply Laminated Cabinetry | STD | STD | STD | STD |
| LED Interior Lighting with Dimmer | STD | STD | STD | STD |
| Overhead Storage with Sliding Doors | STD | STD | STD | STD |
| Panoramic Front Windows with Blackout Shades | STD | STD | STD | STD |
| Probeless Tank Monitoring System | STD | STD | STD | STD |
| Quietstream™ A/C with Heat Pump & Electronic Thermostat | STD | STD | STD | STD |
| Seamless Vinyl Flooring | STD | STD | STD | STD |
Galley, Dinette, Lounge
| 16RB | 19CB | 20FB | 22FB | |
|---|---|---|---|---|
| 3 Burner Gas Cooktop (20, 22); 2 Burner Gas Cooktop (16, 19) | STD | STD | STD | STD |
| Aluminum Roller Blinds | STD | STD | STD | STD |
| Baraldi Cooking Vent with Light | STD | STD | STD | STD |
| Blu-Ray™ DVD Player | STD | STD | STD | STD |
| Dinette Converts to a Lounge and Sleeping Accommodations | STD | STD | STD | STD |
| Flatware Organizer | STD | STD | STD | STD |
| JL Stereo with Bluetooth®, Surround Sound and Subwoofer | STD | STD | STD | STD |
| Laminate Dinette Top | STD | STD | STD | STD |
| Laminate Galley Top | STD | STD | STD | STD |
| LG LED HD TV with Omni Directional Antenna | STD | STD | STD | STD |
| Moen® Faucet | STD | STD | STD | STD |
| Stainless Steel Sink | STD | STD | STD | STD |
| Ultraleather® Dinette Cushions | STD | STD | STD | STD |
Bedroom
| 16RB | 19CB | 20FB | 22FB | |
|---|---|---|---|---|
| Blackout Curtain(s) | STD | STD | STD | STD |
| Decorative Throw Pillows | STD | STD | STD | STD |
| LED HD TV (Shared with Lounge) | STD | STD | STD | STD |
| Overhead Storage with Sliding Doors | STD | STD | STD | STD |
| Pillow Top Memory Foam Mattress | STD | STD | STD | STD |
| Quilted Bedspread | STD | STD | STD | STD |
| Reading LED Lights | STD | STD | STD | STD |
| Sleeping Pillows | STD | STD | STD | STD |
| Under Bed Storage | STD | STD | STD | STD |
| Wardrobe with Hanging Bar | STD | STD | STD | STD |
Bathroom
| 16RB | 19CB | 20FB | 22FB | |
|---|---|---|---|---|
| Lavy Sink** | – | STD | STD | STD |
| Moen® Bathroom Faucet** | – | STD | STD | STD |
| Removable Hand Held Shower Head with Shut Off | STD | STD | STD | STD |
| Retractable Clothes Line in Shower | STD | STD | STD | STD |
| Roof Vent/Fan | STD | STD | STD | STD |
| Toilet | STD | STD | STD | STD |
| Towel Bar/Ring | STD | STD | STD | STD |
Additional
| 16RB | 19CB | 20FB | 22FB | |
|---|---|---|---|---|
| 3 Year 24/7 Coach-Net® Roadside Assistance | STD | STD | STD | STD |
| 3 Year Airstream Limited Warranty (Transferable) | STD | STD | STD | STD |
| Airstream Logo Entrance Mat | STD | STD | STD | STD |
| Built In Winterization Kit | STD | STD | STD | STD |
| Fire Extinguisher | STD | STD | STD | STD |
| Internally Routed A/C Condensation Drain Line to Wheel Well | STD | STD | STD | STD |
| LP, Smoke & Carbon Monoxide Detectors | STD | STD | STD | STD |
| TRA Certified Green: Emerald Status (Highest Rating) | STD | STD | STD | STD |
Features
Inventive modern kitchen- Did you know you can roast a chicken in a convection microwave? That’s just one of the available Caravel kitchen features that’ll inspire a more exciting camp meal. From the stainless steel gas stove with cast-iron burners to the modern residential Moen® faucet, you’ll enjoy cooking even more in a space you love to use.
Panoramic front and rear windows- It’s all about the view, and no matter which side of the Caravel 16RB you’re on you’ve got a panoramic one. Our custom Airstream windows are riveted right into the frame of the trailer and designed to give you a bigger opening radius so more breeze can flow throughout.
Quietstream™ Climate Control- The Caravel comes with an electronic thermostat to control our patented Quietstream ducted climate control system that easily and quickly cools the cabin in relative silence. It even features a heat pump that pulls ambient heat from the air to warm the travel trailer without using the furnace – and without causing condensation. And when you really need to warm up, the onboard furnace is ready for cold-weather trips, too.
Spacious rear bath- The 22FB Caravel floor plan features a spacious bathroom that spans the whole back of the trailer, with a wood door and a window. A standalone shower includes a built-in seat, and a vanity with cabinet storage gives you plenty of space to get ready.
Ultraleather® seating- Caravel’s Ultraleather seating is incredibly supple and soft, yet durable and long-lasting with special strengthening components. It resists temperature change and will never crack from cold weather. And it’s easy to clean, pet-friendly, and won’t scratch or stain, so your furniture looks as beautiful down the road as it did on day one.
Front and Window Awnings- The performance Sunbrella® pinstripe front awning provides shaded outdoor space, and the optional matching window awnings keep the interior cool and private.
Rear Bumper Storage- Store your tools, cords, and more into bonus space in the rear bumper.
JL Stereo with Bluetooth®- Four speakers and a subwoofer play your music throughout the trailer. The Caravel also includes a Blu-Ray™ DVD player and an LG LED HDTV.
Solar Pre-Wire Kit- Solar panels extend the amount of time you can stay powered up off the grid.
Roller shades and Blackout Curtains- Pull down the shades and close the blackout curtains when you’re headed to bed, when you want more privacy, or when you just want to keep the trailer extra cool.
Stainless Steel Rock Guards- The Caravel features the same stainless steel rock guards we use on our larger travel trailers to prevent damage to the body of your trailer during towing.
Stacked Double Tail Lights- Drivers behind the Caravel will know it’s a special trailer with these modern yet retro double cast aluminum tail lights.
All-electric Refrigerator- The refrigerator runs off of battery power, which helps it get cold quickly and efficiently, and stay cool throughout your trip.
Power Tongue Jack- Makes hitching and unhitching easier and more accessible for everyone.
Dimmable LED Lighting- High-end features like dimmable LED lighting help you create the exact right mood inside your trailer.
Memory Foam Mattress- The pillow-top memory foam mattress is made to fit perfectly in the bedroom and help you float into a good night’s rest.
USB and 110V Charging- USB ports and 110V outlets are strategically placed around the trailer, so you never have to go far to keep your devices charged and ready.
