MPuR1eQfOKkOverview
It’s your beach house on the go. The Interstate Tommy Bahama Touring Coach is the perfect marriage of Airstream quality, Mercedes-Benz® performance and safety, and Tommy Bahama island style. And it’s part of the Interstate family, the #1 best-selling Class B diesel motorhome for the past six years. Put it all together, and you get a luxury RV that’s ready to make any trip feel that much more relaxing.

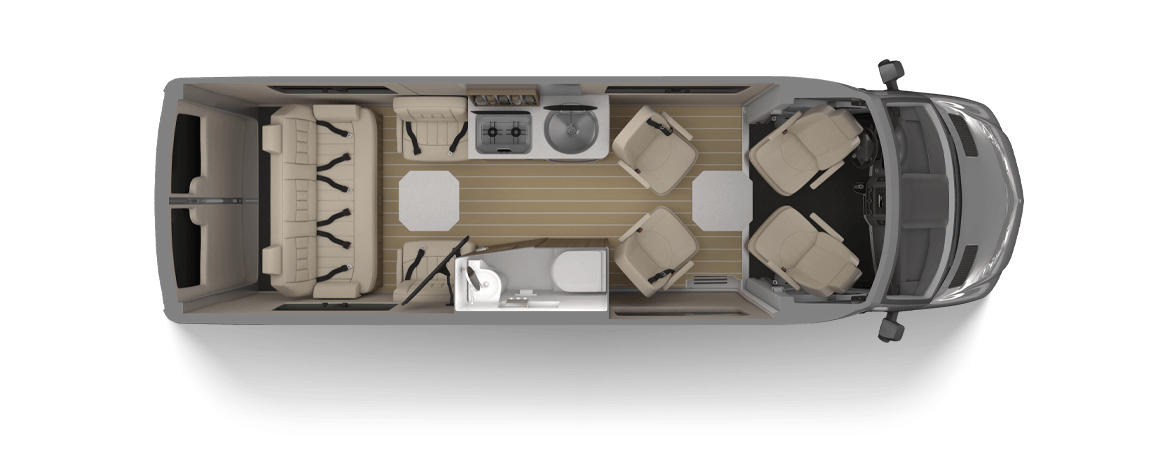

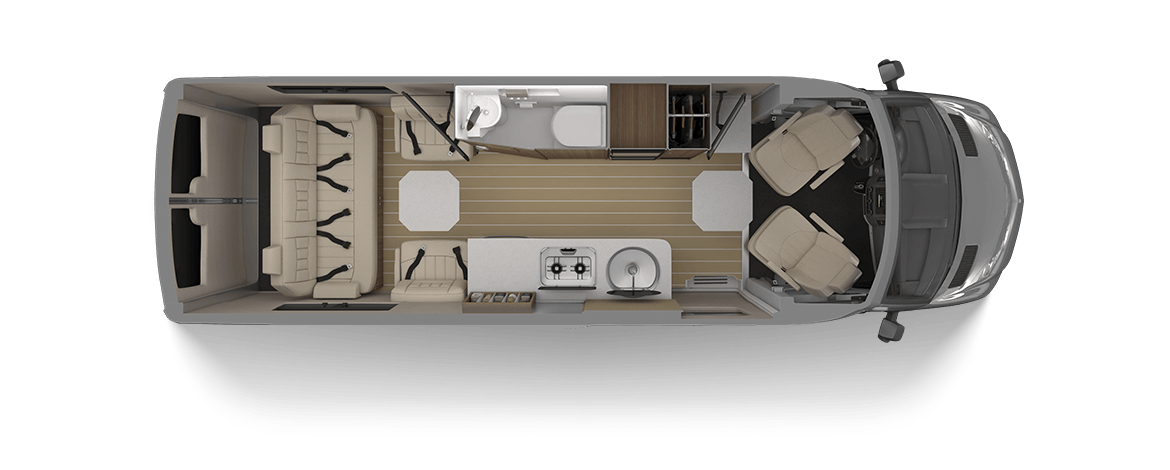

Floor Plans
Specifications
Specs
| Grand Tour | Lounge | |
| Microwave | 1.2 Cubic Feet Drawer Microwave | 1.2 Cubic Feet Drawer Microwave |
| Chassis | Mercedes-Benz® Sprinter 3500 Extended | Mercedes-Benz® Sprinter 3500 Extended |
| Engine | Mercedes-Benz® 3.0L V6 Turbo Diesel | Mercedes-Benz® 3.0L V6 Turbo Diesel |
| Emissions | BlueTEC SCR Technology, 50 State – EPA/CARB Standards | BlueTEC SCR Technology, 50 State – EPA/CARB Standards |
| Horsepower | 188 HP / 325 lbs torque | 188 HP / 325 lbs torque |
| Transmission | 5 Speed Automatic | 5 Speed Automatic |
| Axle Ratio | 3.92 | 3.92 |
| Wheelbase | 170″ | 170″ |
| MPG* | 18+ Estimated Highway | 18+ Estimated Highway |
| Chassis Safety System | Mercedes-Benz® Adaptive ESP® (Electronic Stability Program) | Mercedes-Benz® Adaptive ESP® (Electronic Stability Program) |
| GVWR/GCWR | 11,030 lbs/15,250 lbs | 11,030 lbs/15,250 lbs |
| UBW | 9,050 lbs. 2WD/9,325 lbs. 4WD (add 90 lbs. for air suspension/add 240 lbs for leveling jacks) | 9,300 lbs 2WD/9,575 lbs. 4WD (add 90 lbs. for air suspension/add 240 lbs for leveling jacks) |
| OCCC | 1,980 lbs 2WD/1,705 lbs 4WD (deduct 90 lbs for air suspenion/deduct 240 lbs for leveling jacks) | 1,730 lbs 2WD/1,455 lbs. 4WD (deduct 90 lbs for air suspenion/deduct 240 lbs for leveling jacks) |
| Tow Package | Mercedes-Benz® Hitch, 7 Pin Trailer Plug, Brake Control Pre-wired | Mercedes-Benz® Hitch, 7 Pin Trailer Plug, Brake Control Pre-wired |
| Tow Capacity** | Up to 5,000 lbs | Up to 5,000 lbs |
| Trailer Safety System | Mercedes-Benz® Trailer Stability Assist System | Mercedes-Benz® Trailer Stability Assist System |
| Overall Length | 24′ 4.5″ | 24′ 4.5″ |
| Overall Height | 9′ 8″ 2WD/9′ 11″ 4WD (inc A/C & Antenna) | 9′ 8″ 2WD/9′ 11″ 4WD (inc A/C & Antenna) |
| Overall Width | 6′ 7.7″ | 6′ 7.7″ |
| Interior Height/Width | 6′ 2.25″ / 5′ 10″ | 6′ 2.25″ / 5′ 10″ |
| Tank Capacities | Fresh-26 gals, Gray-27 gals, Black-14 gals | Fresh-26 gals, Gray-27 gals, Black-13 gals |
| LPG | 14.55 gals (61.9 lbs) 77% fill | 14.55 gals (61.9 lbs) 77% fill |
| Diesel Fuel | 24.5 gals | 24.5 gals |
| Air Conditioner | 13,500 BTU | 13,500 BTU |
| Furnace | 16,000 BTU | 16,000 BTU |
| Water Heater | 60,000 BTU On-Demand Continuous Flow | 60,000 BTU On-Demand Continuous Flow |
| Heated Tanks | Fresh and Gray Tanks (12 volt) | Fresh and Gray Tanks (12 volt) |
| Refrigerator & Freezer | 5.0 cu. ft. Fridge & 1.6 cu. ft. Drawer Freezer (110 volt) | 3.1 cu. ft. Fridge (110 volt) |
| Cooktop | 2 Burner with Integrated Cover | 2 Burner with Integrated Cover |
| Safety Components | LP Gas Detector, Smoke and CO2 Alarm, Fire Extinguisher, First Aid Kit | LP Gas Detector, Smoke and CO2 Alarm, Fire Extinguisher, First Aid Kit |
| Plumbing System | Macerator Pump System | Macerator Pump System |
| TV Antenna | Omni Directional In-motion VHF/UHF | Omni Directional In-motion VHF/UHF |
| TV Cable | Cable TV Outlets/Hook-ups | Cable TV Outlets/Hook-ups |
| TV Satellite | Pre-wired for Satellite Dish | Pre-wired for Satellite Dish |
| Electrical System | Touch Screen/Touch Pad Electronic Controls with Energy Management System | Touch Screen/Touch Pad Electronic Controls with Energy Management System |
| Converter/Inverter | 50 amp Multi-stage Charger, 1,000 watt Pure Sine Inverter | 50 amp Multi-stage Charger, 1,000 watt Pure Sine Inverter |
| Generator | 2.5 kW (LPG) with Auto Start and Ultra Quiet Resonator | 2.5 kW (LPG) with Auto Start and Ultra Quiet Resonator |
| Batteries (Coach) | 4-12 Volt Deep Cycle Maintenance Free Group 24 AGMs | 4-12 Volt Deep Cycle Maintenance Free Group 24 AGMs |
| Shore Power | 30 amp/110 Volt Service | 30 amp/110 Volt Service |
| Solar Power | 300 Watt Solar System | 300 Watt Solar System |
| Support | 24/7 365 Roadside Assistance | 24/7 365 Roadside Assistance |
| Airstream Warranty*** | 3 Years/36,000 Miles | 3 Years/36,000 Miles |
| Mercedes-Benz® Warranty*** | 3 Years/36,000 Miles | 3 Years/36,000 Miles |
| Mercedes-Benz® Engine Warranty*** | 5 Years/100,000 Miles | 5 Years/100,000 Miles |
Safety
| Grand Tour | Lounge | |
| Blind Spot Assist | STD | STD |
| Child Safety Tether Anchors (2 Mid Captain Seats) | – | STD |
| Collision Prevention Assist | STD | STD |
| Front & Rear Parking Assist | STD | STD |
| High Beam Assist | STD | STD |
| Lane Keeping Assist | STD | STD |
| Multiple Safety Impact Air Bags | STD | STD |
| Rain Sensing Windshield Wipers | STD | STD |
| Rear & Side Camera Assist | STD | STD |
| Spare Tire | STD | STD |
Exterior
| Grand Tour | Lounge | |
| 110V Outlet | STD | STD |
| 3M® Protective Film Rear Bumper | STD | STD |
| 4-Wheel Drive | OPT | OPT |
| Air Ride Suspension | OPT | OPT |
| Alcoa® DuraBright Wheels | STD | STD |
| Exterior Shower with Hot & Cold Water | STD | STD |
| Fog Lamps | STD | STD |
| Full Body Kit | STD | STD |
| Heated Windshield | STD | STD |
| Hidden Hitch Cover Rear Bumper | STD | STD |
| Hydraulic Leveling Jacks | OPT | OPT |
| LED Lighting - patio, service box locations, awning (adjustable), under carriage (adjustable) | STD | STD |
| Locking Service Boxes | STD | STD |
| LP Accessory Hook-up (Grill) | STD | STD |
| Power Armless Awning with Auto-Retract | STD | STD |
| Power Entry Step (sliding side door) | STD | STD |
| Power Heated Mirrors | STD | STD |
| Power Rear Screen | STD | STD |
| Side Screen Door | STD | STD |
| Xenon Headlights with Washer System | STD | STD |
Cockpit
| Grand Tour | Lounge | |
| Cockpit Carpet Floor Mats | STD | STD |
| Entry Door Lighting | STD | STD |
| Heated Driver/Passenger Seats | STD | STD |
| In-Dash Maintenance Monitoring System | STD | STD |
| Locking Glove Box | STD | STD |
| Multifunctional Steering Wheel | STD | STD |
| Overhead Map Lights | STD | STD |
| Privacy Shades | STD | STD |
| Rear & Side View Camera Monitor | STD | STD |
| Tilt & Telescopic Steering Wheel | STD | STD |
| Touch Screen NAV/SAT Radio/DVD System (8″) | STD | STD |
Main Cabin
| Grand Tour | Lounge | |
| Additional Rear Seat | OPT | OPT |
| Adjustable LED Lighting | STD | STD |
| Blu-Ray™ DVD Player | STD | STD |
| Built-in Workstation | STD | – |
| Dupont Corian® Pedestal Table (1) | STD | STD |
| Fantastic© Fan with Rain Sensor | STD | STD |
| Flush-Mount & Solid Shut Cabinets | STD | STD |
| LED Widescreen HDTVs (2) | STD | STD |
| Magic Suede® on Walls & Window Coverings | STD | STD |
| Matte Finish Laminate Cabinetry | STD | STD |
| Overhead Wardrobe Closet | OPT | OPT |
| Pass-Thru Rear Storage | STD | STD |
| Power Day/Night Window Shades | STD | STD |
| Power Rear Sofa | STD | STD |
| Rear Cabin Carpet Kit (Black) | OPT | OPT |
| Rear Hidden Floor Storage (N/A with Air Ride Suspension) | STD | STD |
| Signature Aluminum Ceiling & Trim | STD | STD |
| Ultraleather® Seating | STD | STD |
| USB Charging Ports | STD | STD |
| Woven Plank Design Synthetic Flooring | STD | STD |
Galley
| Grand Tour | Lounge | |
| Bar Storage Rack | STD | STD |
| Cooktop with Integrated Cover | STD | STD |
| Dupont Corian® Countertop with Backsplash | STD | STD |
| Dupont Corian® Galley Flip-up Shelf | STD | STD |
| Sink with Integrated Cover | STD | STD |
Bathroom
| Grand Tour | Lounge | |
| Louvered Door | STD | STD |
| One-Piece Shower | STD | STD |
| Retractable Clothesline | STD | STD |
| Sink with Articulated Mirror | STD | STD |
| Toilet | STD | STD |
| Towel Rack | STD | STD |
Features
Tommy Bahama Spotlight Video - Take a closer look at the Tommy Bahama Relax Edition Touring Coach and how we added island style in thoughtful and unexpected places.
Exclusive Tommy Bahama® Accessory Kit - An exclusive Tommy Bahama Accessory Kit comes with every Relax Edition touring coach. You get two oversized outdoor lounge chairs, a cooler, candles, glassware, barware, bedding, towels, and more, and each item has a thoughtful place inside the RV.
Built-in bar ready to entertain - The party follows you wherever you go in the Interstate Tommy Bahama Touring Coach. The galley kitchen features a built-in rack to display your wine and spirits and easily access them whenever you’re ready to serve up drinks. Plus, you have plenty of counter space to set out your favorite mixers, and all the appliances you need to whip up some snacks for everyone.
Bright and efficient onboard bathroom - The European-style bathroom neatly houses a sink, shower, and toilet, plus a built-in shampoo, conditioner, and body wash station and a clothesline. Every inch of the space is designed to get wet, and every function is smart and efficient. The showerhead doubles as the faucet, the mirror extends and swivels, and there’s a totally waterproof toilet paper cover.
Mercedes-Benz® performance and safety - The powerful Mercedes-Benz 3.0L V6 turbo diesel engine makes the touring coach driving experience so enjoyable – with powerful getup balanced with impressive fuel economy. And standard-setting Mercedes-Benz safety features are everywhere you look in the Interstate Tommy Bahama, including lane keeping assist, collision prevention assist, rear- and side-view cameras, the most airbags available from Mercedes-Benz, and a FUSION® Infotainment System with Garmin navigation and lane guidance.
Airstream Air Ride Suspension - The rear of the Tommy Bahama is equipped with our exclusive optional Air Ride Suspension which adjusts itself to bumps in the road, changes in elevation, and changes in wind resistance, so you can enjoy a smooth ride, mile after mile.
Four-wheel drive, whenever you need it - An optional on-demand four-wheel drive system from Mercedes-Benz gives you added stability and control. When you press the button, Load-Adaptive Electronic Stability and Electronic Traction systems work together to ensure your Tommy Bahama Touring Coach is prepared for inclement road conditions.
